SCREW AIR COMPRESSOR MOTOR OVERHAUL PROCEDURE

The electric motor is one of the most critical components of a screw air compressor. After extended operation, the motor may experience bearing wear, excessive vibration, overheating, insulation deterioration, winding damage, or shaft misalignment.

A professional air compressor motor overhaul helps restore reliable operation, reduce unexpected breakdowns, and extend the service life of the compressor.

1. Initial Motor Inspection

Before dismantling the motor, technicians perform an initial inspection to evaluate its operating condition.

Typical checks include:

• Motor noise and abnormal sounds
• Vibration level
• Operating temperature
• Three-phase current
• Bearing condition
• Power cables and terminal connections
• Insulation resistance
• Coupling or belt-drive condition

The inspection results are recorded to determine the appropriate overhaul and repair plan.

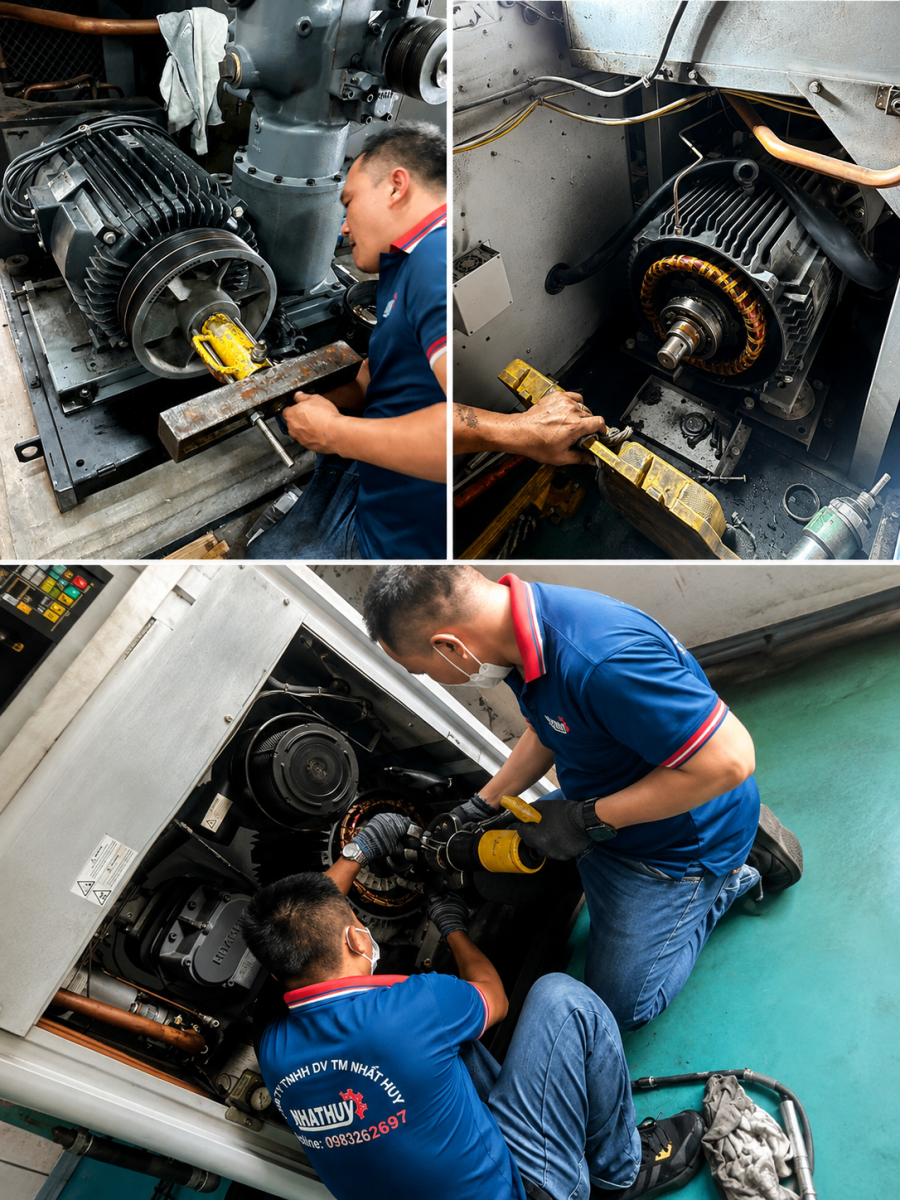

2. Disconnect and Remove the Motor

Before any work begins, the electrical power supply must be safely isolated according to applicable safety procedures.

Technicians then:

• Mark electrical cables and terminal positions
• Disconnect the power cables
• Disconnect the coupling or belt drive
• Check the existing alignment condition
• Remove the motor from the air compressor
• Mark important assembly positions before dismantling

Proper marking helps ensure accurate reassembly.

3. Complete Motor Disassembly

The motor is completely dismantled for detailed inspection.

Major components include:

• Front and rear end shields
• Cooling fan
• Rotor
• Stator
• Bearings
• Shaft
• Seals and retaining components
• Terminal box and electrical connections

Each component is inspected separately to identify wear, damage, overheating, or other abnormalities.

4. Cleaning of Motor Components

Dust, oil, grease, and contamination are removed using suitable cleaning methods.

Special attention is given to:

• Stator windings
• Rotor
• Cooling passages
• Cooling fan
• Motor housing
• Terminal box

A clean cooling system is essential for maintaining proper motor operating temperature.

5. Stator and Electrical Inspection

The electrical condition of the motor is carefully evaluated.

Depending on the motor type and condition, tests may include:

• Insulation resistance measurement
• Winding resistance measurement
• Phase resistance balance
• Inspection of winding insulation
• Inspection of terminal connections
• Checking for overheating or burned windings

If the winding insulation remains in acceptable condition, unnecessary rewinding should be avoided.

If the winding is severely damaged, short-circuited, grounded, or burned, motor rewinding may be required.

6. Rotor and Shaft Inspection

The rotor and motor shaft are inspected for:

• Shaft wear
• Shaft runout
• Bearing seating condition
• Rotor damage
• Signs of rotor-to-stator contact
• Mechanical deformation
• Abnormal wear

Any damaged components must be repaired or replaced according to the actual condition and applicable technical specifications.

7. Bearing Inspection and Replacement

Motor bearings are critical to reliable compressor operation.

Technicians inspect:

• Bearing wear
• Bearing clearance
• Noise
• Signs of overheating
• Bearing seats on the shaft
• Bearing housing condition

Worn or damaged bearings are replaced with bearings of the correct type and specification.

8. Motor Rewinding – If Required

If testing confirms severe winding damage, the stator may require complete rewinding.

Important parameters must be controlled during the rewinding process, including:

• Wire size
• Number of turns
• Winding configuration
• Connection method
• Insulation class
• Rated voltage
• Frequency
• Original motor design specifications

After rewinding, the winding insulation is properly treated and tested before final assembly.

9. Rotor Balancing – If Required

Rotor imbalance can cause excessive vibration, premature bearing failure, and reduced motor life.

When required by inspection results, the rotor is dynamically balanced using appropriate equipment before reassembly.

10. Motor Reassembly

After all components have been inspected, repaired, or replaced, the motor is carefully reassembled.

The process includes:

• Installing new or serviceable bearings
• Installing the rotor
• Checking rotor movement and internal clearance
• Installing the end shields
• Installing the cooling fan
• Checking electrical terminals
• Tightening all fasteners correctly

The motor shaft should rotate smoothly without abnormal friction or mechanical interference.

11. Motor Testing After Overhaul

Before installation back into the air compressor, the motor is tested to verify its condition.

Depending on the motor and available test equipment, checks may include:

• Insulation resistance
• Winding resistance
• Phase balance
• No-load current
• Motor rotation direction
• Vibration
• Noise
• Bearing condition
• Operating temperature

Only after the motor meets the required technical criteria should it be returned to service.

12. Reinstallation and Alignment

The overhauled motor is installed back into the screw air compressor.

For direct-coupled air compressors, accurate alignment between the motor and airend is particularly important.

For belt-driven air compressors, technicians should check:

• Pulley alignment
• Belt condition
• Belt tension

Incorrect alignment can cause excessive vibration, bearing damage, coupling wear, and premature motor failure.

13. Air Compressor Test Run

After installation, the complete air compressor is started and tested under operating conditions.

Technicians monitor:

• Motor current
• Voltage
• Operating temperature
• Vibration
• Noise
• Bearing condition
• Rotation direction
• Coupling or belt-drive condition
• Compressor operation under load

The final operating parameters should be recorded and compared with the required specifications before the equipment is returned to the customer.
